LED Street Light Products

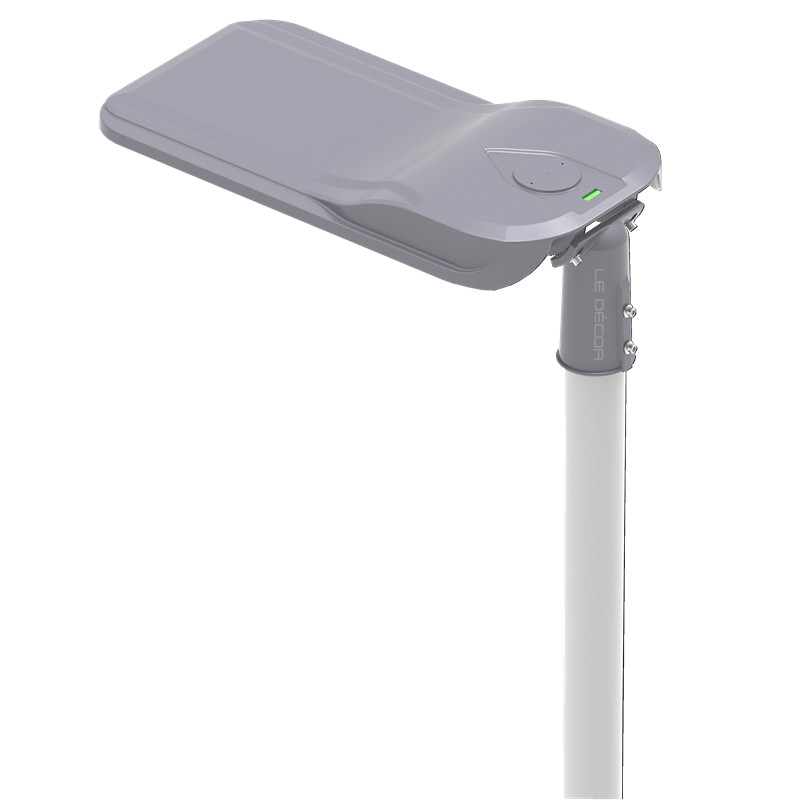

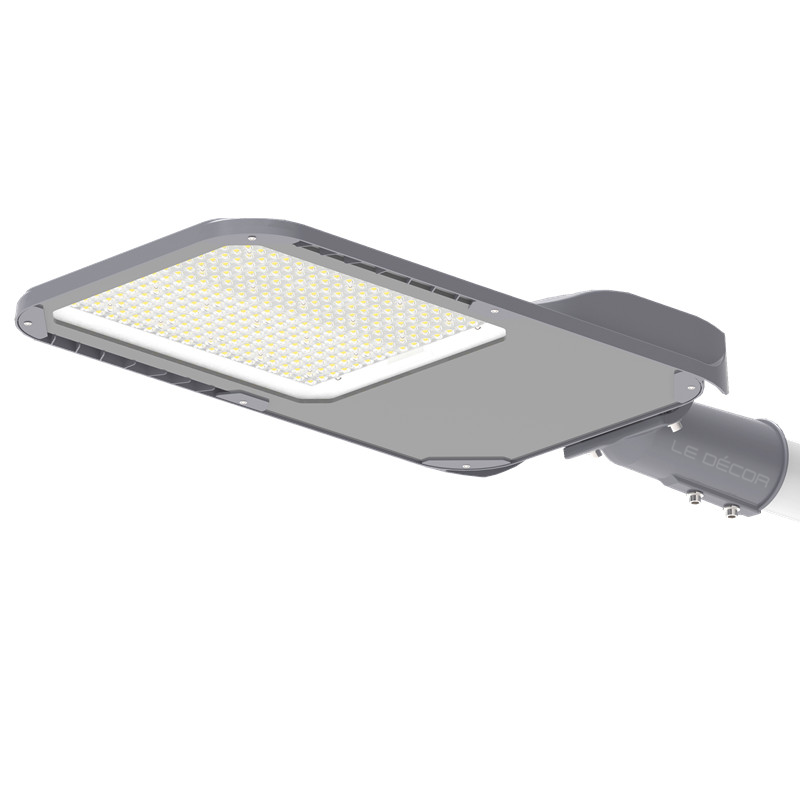

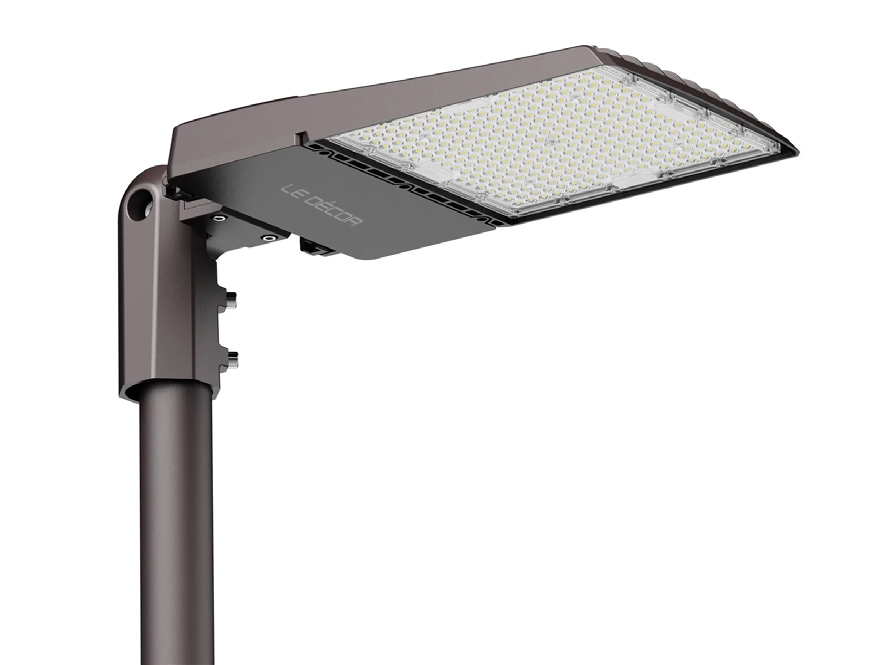

LD-11508-LED Street Light
LD-11508-LED Street Light
- Die-casted with ADC 12 aluminium, which is more conductive to heat conduction and divergence
- 4mm tempered glass surface
- Light using lumileds LED with high lumen efficiency
- The lens adopts optical grade PC anti-UV material to achieve high transmittance and multiple light distributions
- Equipped with high efficiency LED driver, excellent stability
- Surge protection:10KV(20KV for option)
- Estimated durability 10+ years
| Light Source: | LUMILEDS 2835 |
| Power: | 50W/100W/150W/200W |
| Lumen Efficacy: | 120-130lm/W |
| CCT: | 3000K/4000K/5000K/5700K/6500K |
| Input Voltage: | AC200-277V |
| Beam Angle: | 60°,90°,120, T2, T3 |
| Material: | ADC12 Aluminium |
| Finishing Color: | Grey |
| Driver: | Meanwell, Sosen |
| IP Rating: | IP66 |
| Mounting: | Pole mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

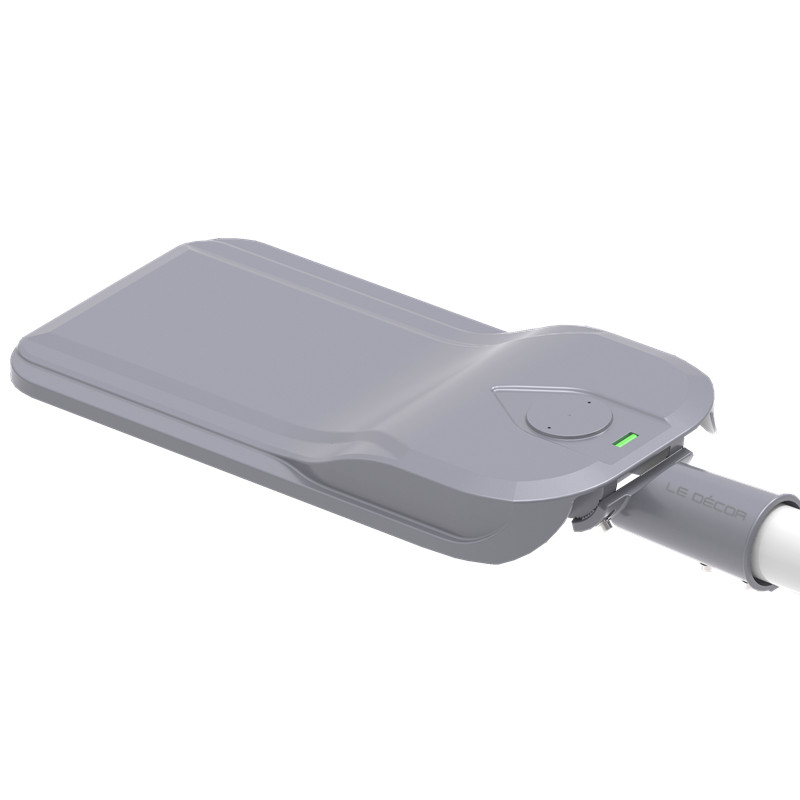

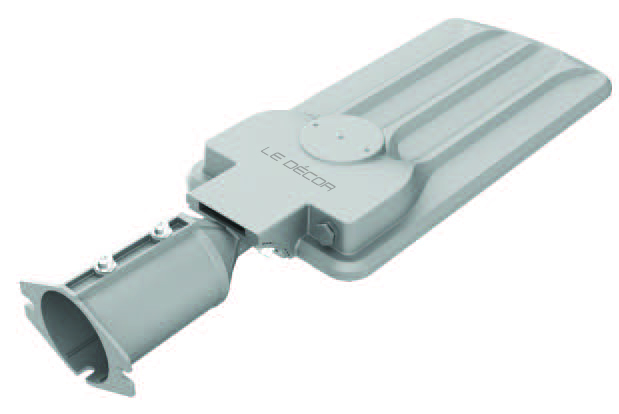

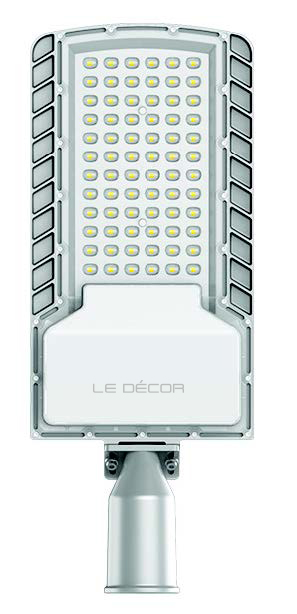

LD-11512-LED Street Light
LD-11512-LED Street Light
- Housing Material: Aluminium, ensuring good heat dissipation and corrosion resistance
- Adopt Lumiled LED chip, High efficiency with options for 160 LM/W, 180 LM/W, or 200 LM/W, indicating excellent light output for the power consumed
- Dimmable options (DALI, 0-10V) and integrated sensor allow for smart lighting solutions and further energy savings
- Surge protection:10KV(20KV for option)
- Estimated durability 10+ years
| Light Source: | LUMILEDS 5050 |
| Power: | 30W/50W/75W/100W/150W/200W |
| Lumen Efficacy: | 150-160lm/W |
| CCT: | 3000K/4000K/5000K/5700K/6500K |
| Input Voltage: | AC200-240V |
| Beam Angle: | T2M |
| Material: | Aluminium |
| Finishing Color: | Grey |
| Driver: | Sosen |
| IP Rating: | IP66 |
| Mounting: | Pole mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

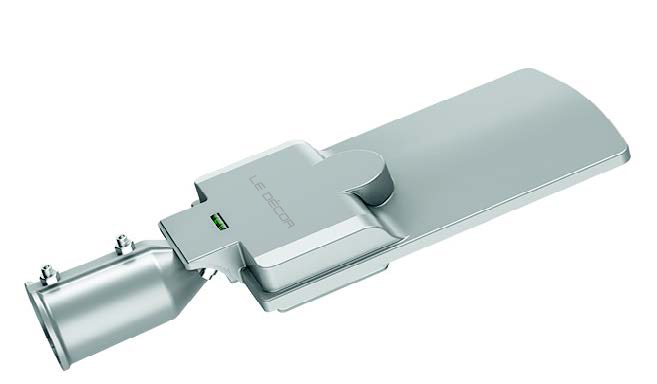

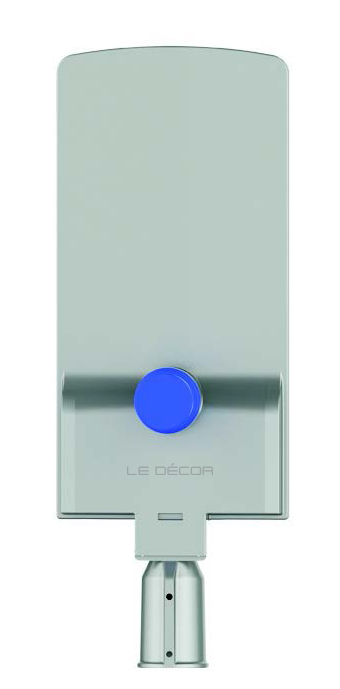

LD-11514-LED Street Light
LD-11514-LED Street Light
- Housing Material: Aluminium, ensuring good heat dissipation and corrosion resistance
- High lumen efficacy up to 150lm/W
- Dimmable options (DALI, 0-10V) and integrated sensor allow for smart lighting solutions and further energy savings
- Surge protection:10KV(20KV for option)
- Estimated durability 10+ years
| Light Source: | SMD2835 |
| Power: | 30W/50W/75W/100W/150W/200W |
| Lumen Efficacy: | 140-150lm/W |
| CCT: | 3000K/4000K/5000K/5700K/6500K |
| Input Voltage: | AC200-277V |
| Beam Angle: | T2M |
| Material: | Aluminium |
| Finishing Color: | Grey |
| Driver: | Standard |
| IP Rating: | IP66 |
| Mounting: | Pole mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

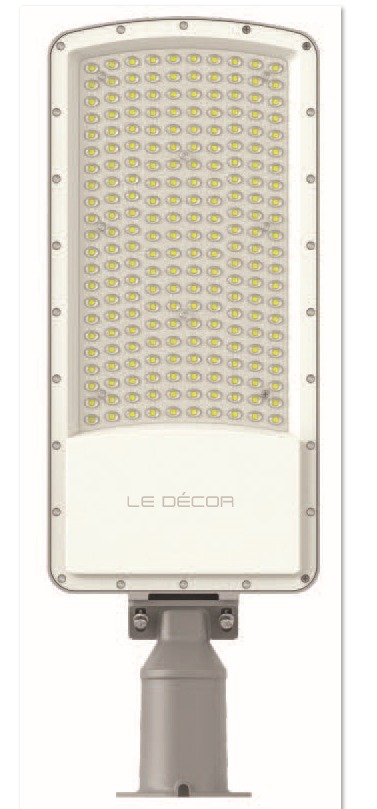

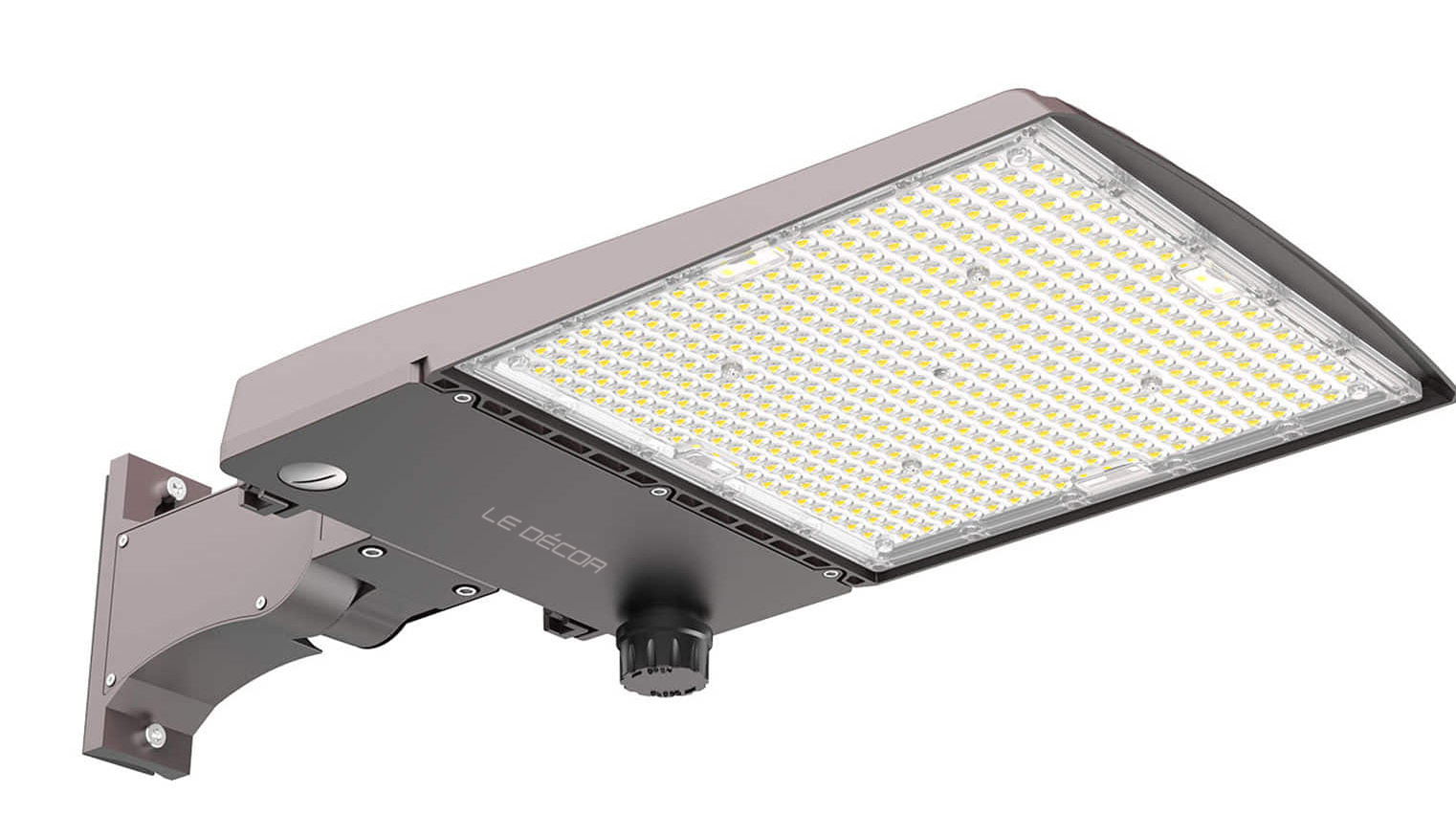

LD-20505-LED Street Light
LD-20505-LED Street Light
- Durable die-cast aluminium housing for long lasting performance
- Selectable 3 CCT options: 3000K / 4000K / 5000K
- Polycarbonate lens for enhanced durability
- Rated IP65 for waterproof protection
- Standard bronze finish
- Surge protection:10KV(20KV for option)
- Estimated durability 10+ years
| Light Source: | SMD 2835 |
| Power: | 100W/150W/200W/240W/300W |
| Lumen Efficacy: | 170-180lm/W |
| CCT: | 3000K/4000K/5000K(3 CCT) |
| Input Voltage: | AC120-277V |
| Beam Angle: | Type III, Type IV, Type V |
| Material: | Die-cast aluminium |
| Finishing Color: | Bronze |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Bracket Mounted |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
