LED High Bay Light Products

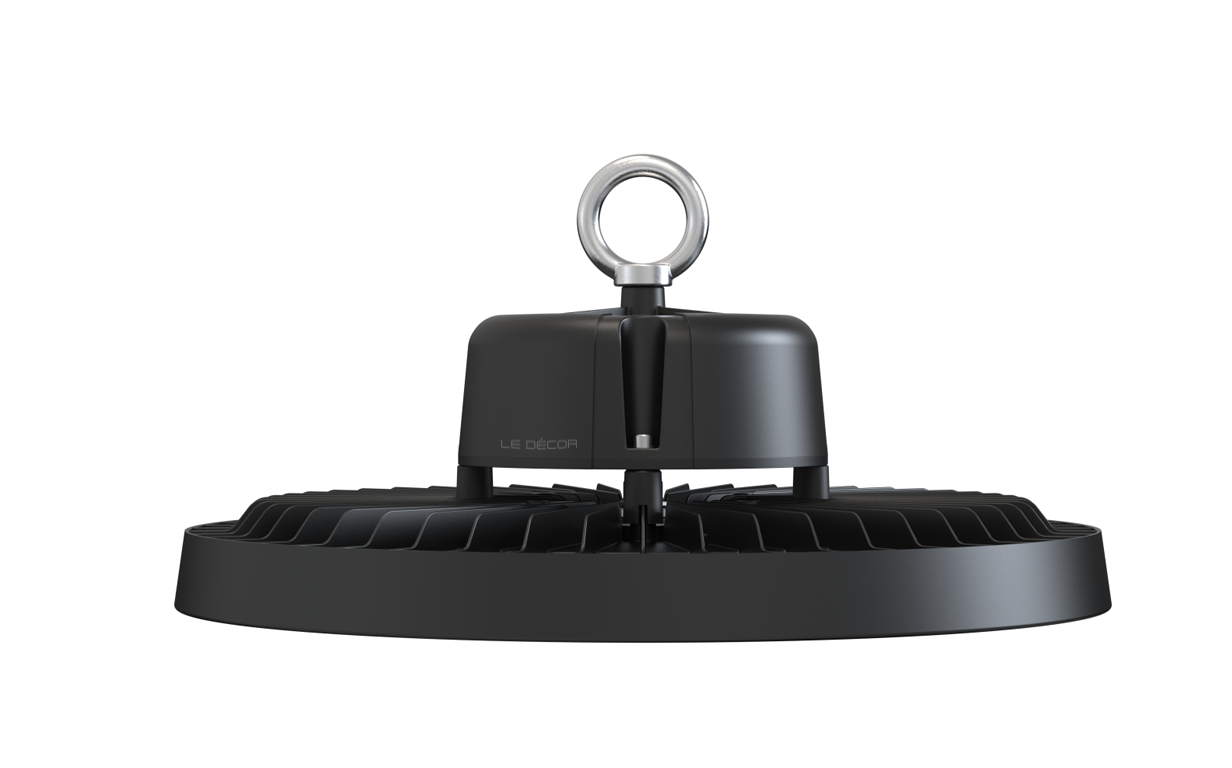

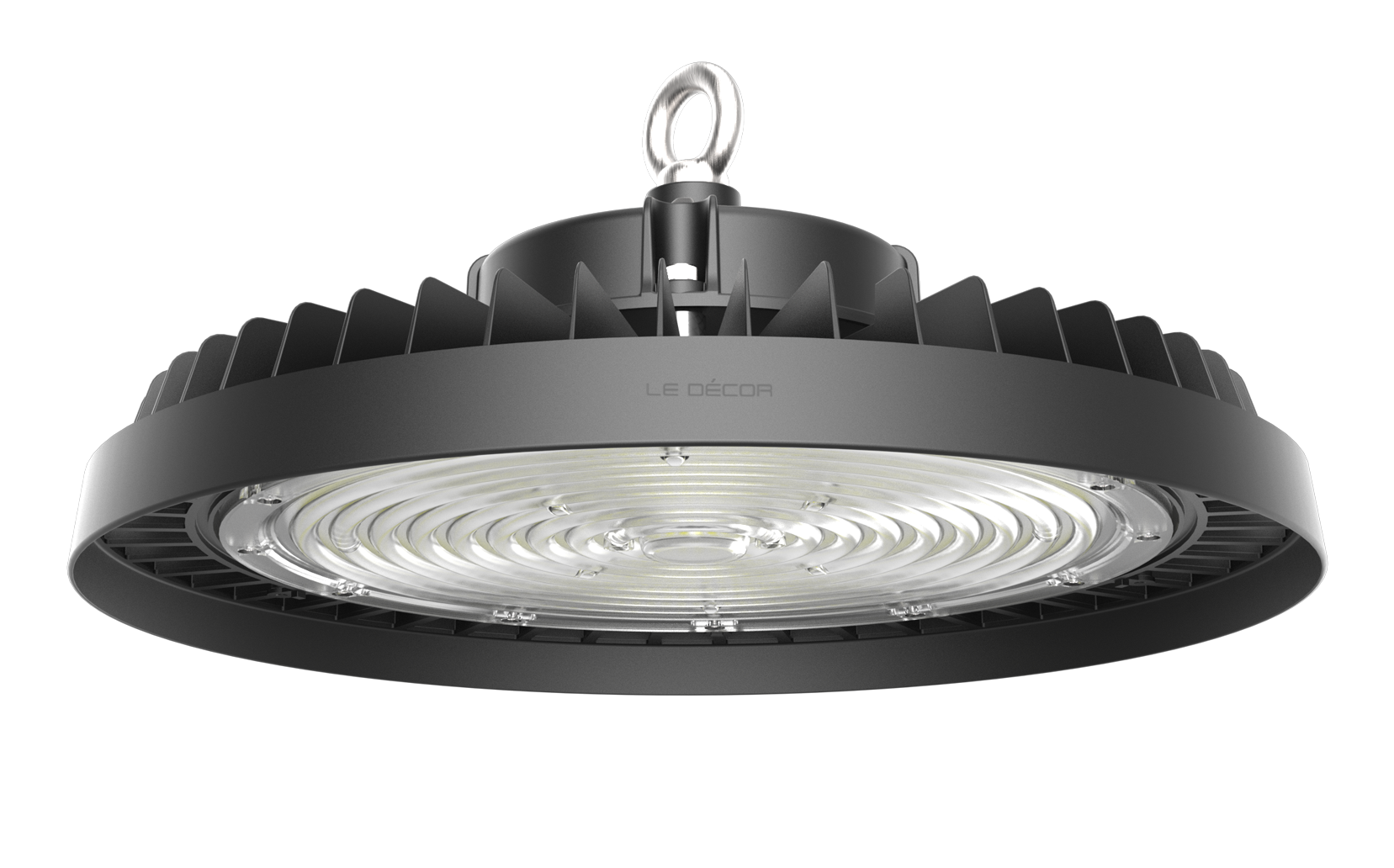

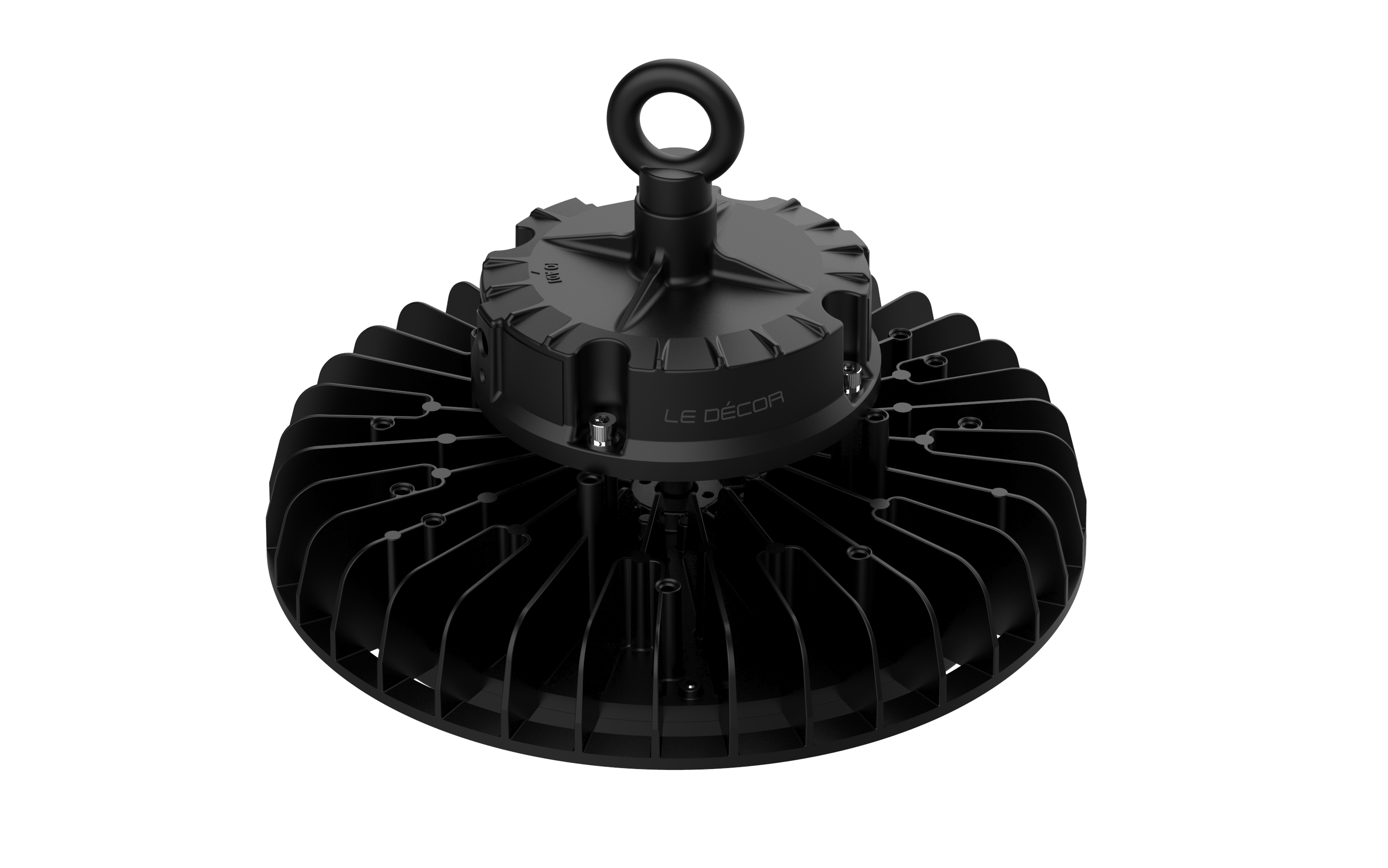

LD-7701-LED High Bay Light
LD-7701-LED High Bay Light
- The heat sink is made of die-cast aluminium with powder coating
- Good heat dissipation, light weight, and good anti-corrosion
- Lifespan can reach up to 100000Hrs, with lumen output remain 78.24%
- UGR is lower than 25 when the light is with lens
- 100-200W Watts can replace HID of 200-600watts
- Dimming: 0-10V/ Dali
| Light Source: | Seoul LED |
| Power: | 100W/150W/200W |
| Lumen Efficacy: | 135lm/W |
| CCT: | 3000K-6500K |
| Input Voltage: | AC100-277V |
| Beam Angle: | 120° |
| Material: | Die-cast Aluminium |
| Finishing Color: | Black |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Hanging / Bracket |
| Lifespan: | 100000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

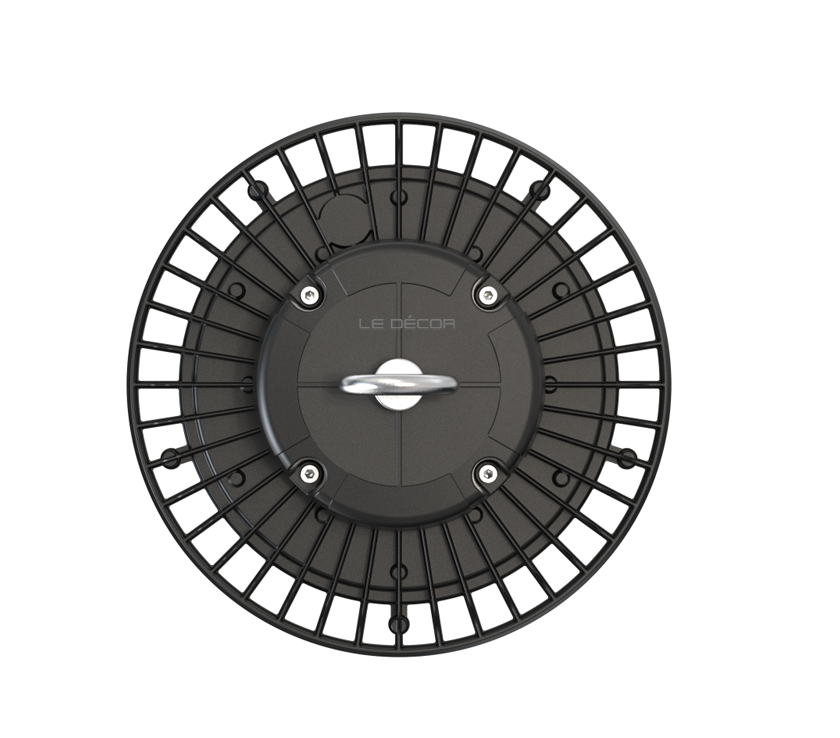

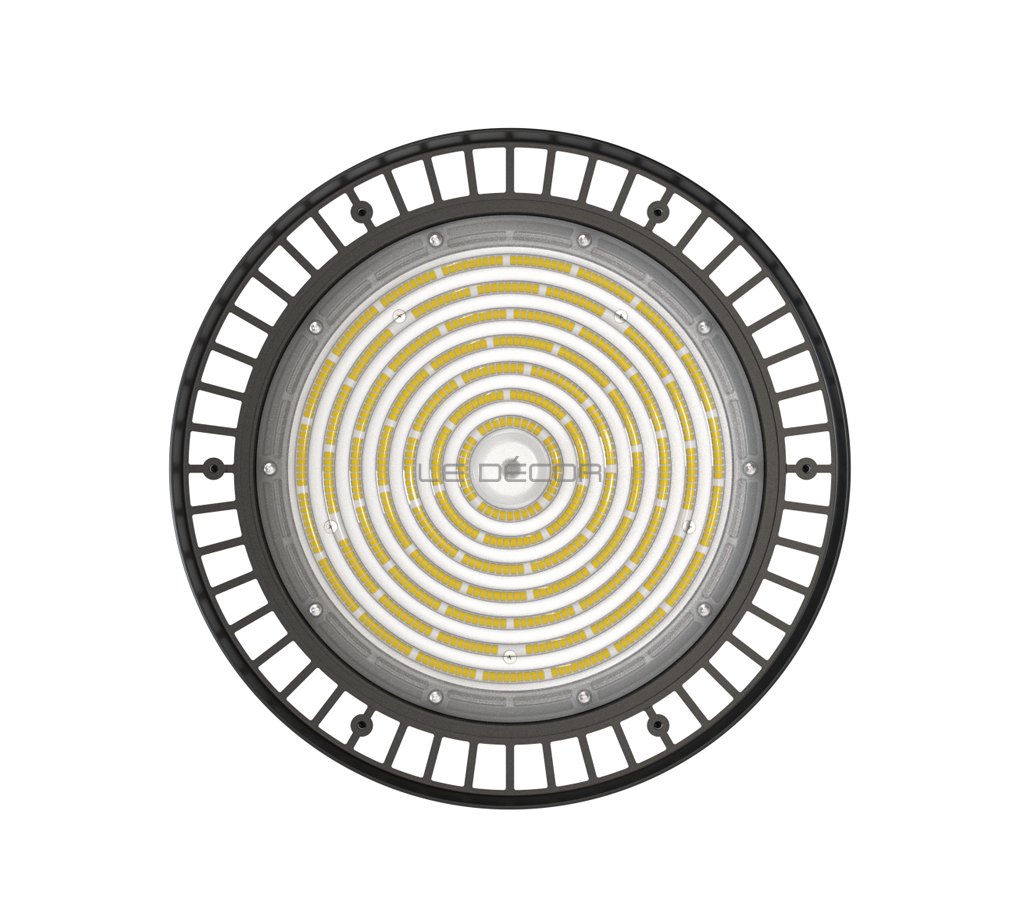

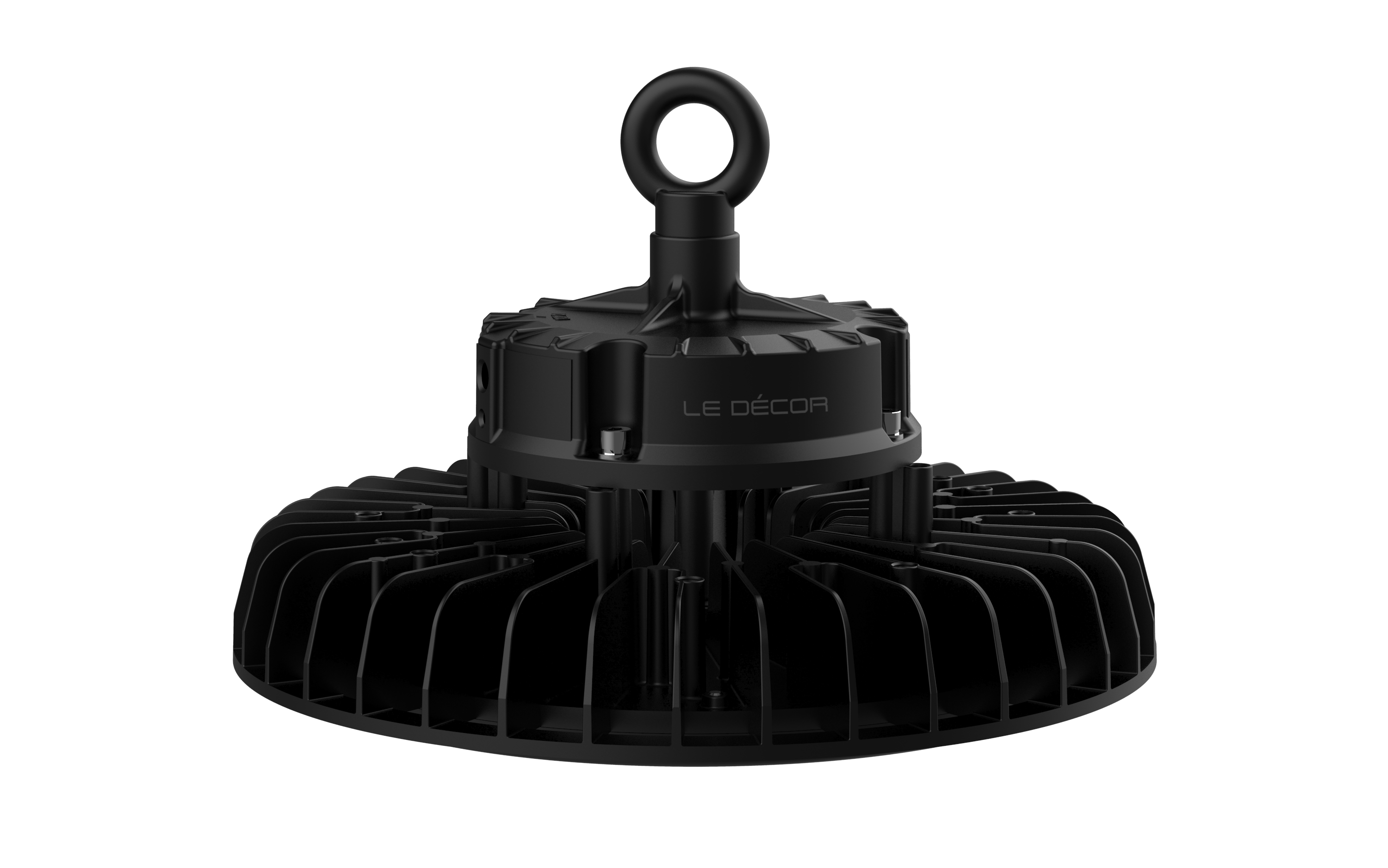

LD-9402-LED High Bay Light
LD-9402-LED High Bay Light
- Die-cast Aluminium housing
- Good heat dissipation and light weight
- Philips LED chip, high lumen efficiency 160lm/W
- 60D, 90D,120D beam angles for option
- IP65 Waterproof Rating ensure stable and excellent performance in any wet ,moist or rainy places
- Estimated durability 15+ years
| Light Source: | PHILIPS LED chip |
| Power: | 100W/150W/200W |
| Lumen Efficacy: | 150-160lm/W |
| CCT: | 3000K/4000K/5700K/6000K |
| Input Voltage: | AC100-277V |
| Beam Angle: | 60°,90°,120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black/White |
| Driver: | Sosen |
| IP Rating: | IP65 |
| Mounting: | Hanging |
| Lifespan: | 50,000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

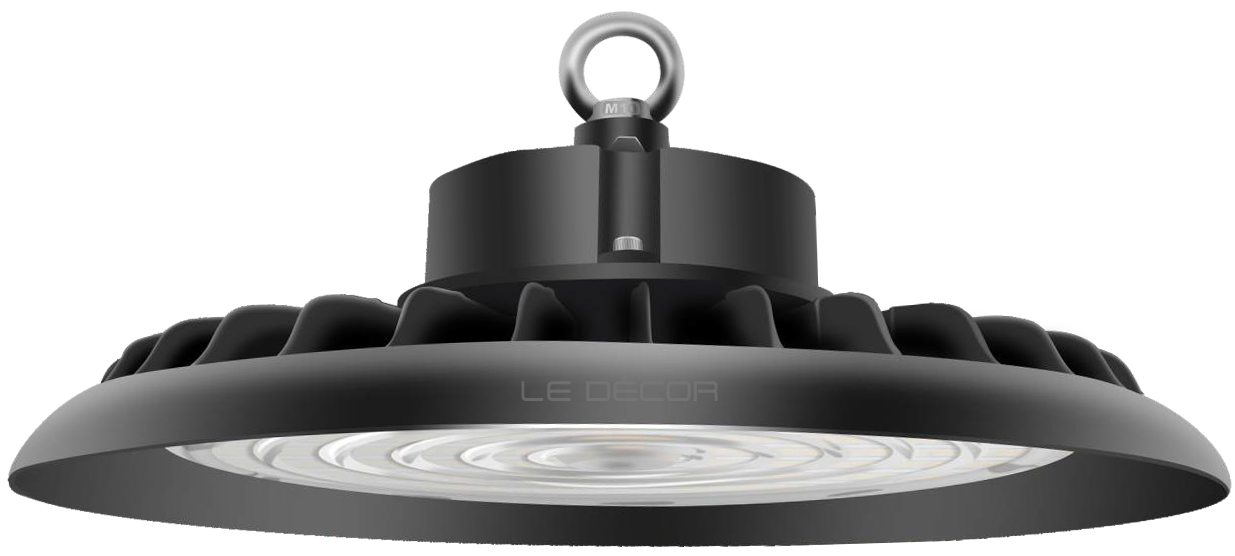

LD-11503-LED High Bay Light
LD-11503-LED High Bay Light
- Die-casted with ADC 12 aluminium, which is more conductive to heat conduction and divergence
- Driver and radiator seperation, perfect to heat dissipation, longer life
- Light using lumileds LED with high lumen efficiency
- The lens adopts optical grade PC anti-UV material to achieve high transmittance and multiple light distributions
- High temperature resistant silicone waterproof ring
- Estimated durability 15+ years
| Light Source: | LUMILEDS SMD 2835 |
| Power: | 100W/150W/200W/300W/500W |
| Lumen Efficacy: | 150-160lm/W |
| CCT: | 2700K/3000K/4000K/5000K/5700K/6500K/ |
| Input Voltage: | AC100-277V |
| Beam Angle: | 60°/90°/120° |
| Material: | ADC12 Aluminium |
| Finishing Color: | Black |
| Driver: | Sosen and Lifud |
| IP Rating: | IP66 |
| Mounting: | Suspensions and brackets optional |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

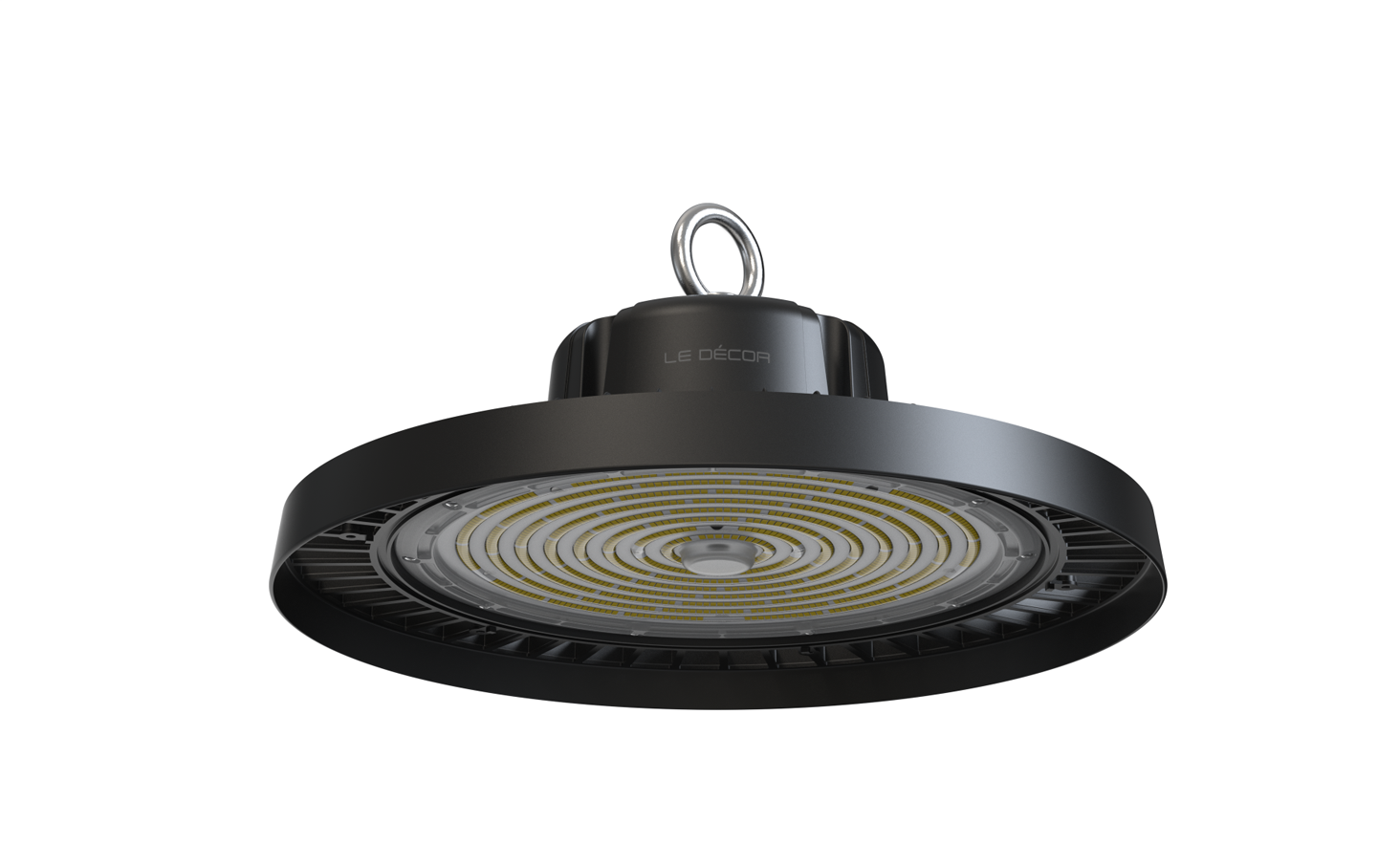

LD-11101-LED High Bay Light
LD-11101-LED High Bay Light
- Die-casting aluminium housing with good heat dissipation to make sure the stable long
- High efficient SMD2835 LED, the light can be reach high lumen up to 210lm/W
- Smart Functions: 0-10V dimmable, Dali dimmable, Microwave sensor, Emergency, 3 CCT and 3 Power switchable
- Widely used in workshop, stadium, factory, warehouse, highway toll station, petrol station, supermarket, mine and other industrial lighting places
| Light Source: | SMD2835 LED chip |
| Power: | 100W/150W/200W |
| Lumen Efficacy: | 150-210lm/W |
| CCT: | 2700K/3000K/4000K/6000K |
| Input Voltage: | AC100-277V |
| Beam Angle: | 60°,90°,120° |
| Material: | Die-cast aluminium |
| Finishing Color: | Black |
| Driver: | Standard |
| IP Rating: | IP65 |
| Mounting: | Pendant Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

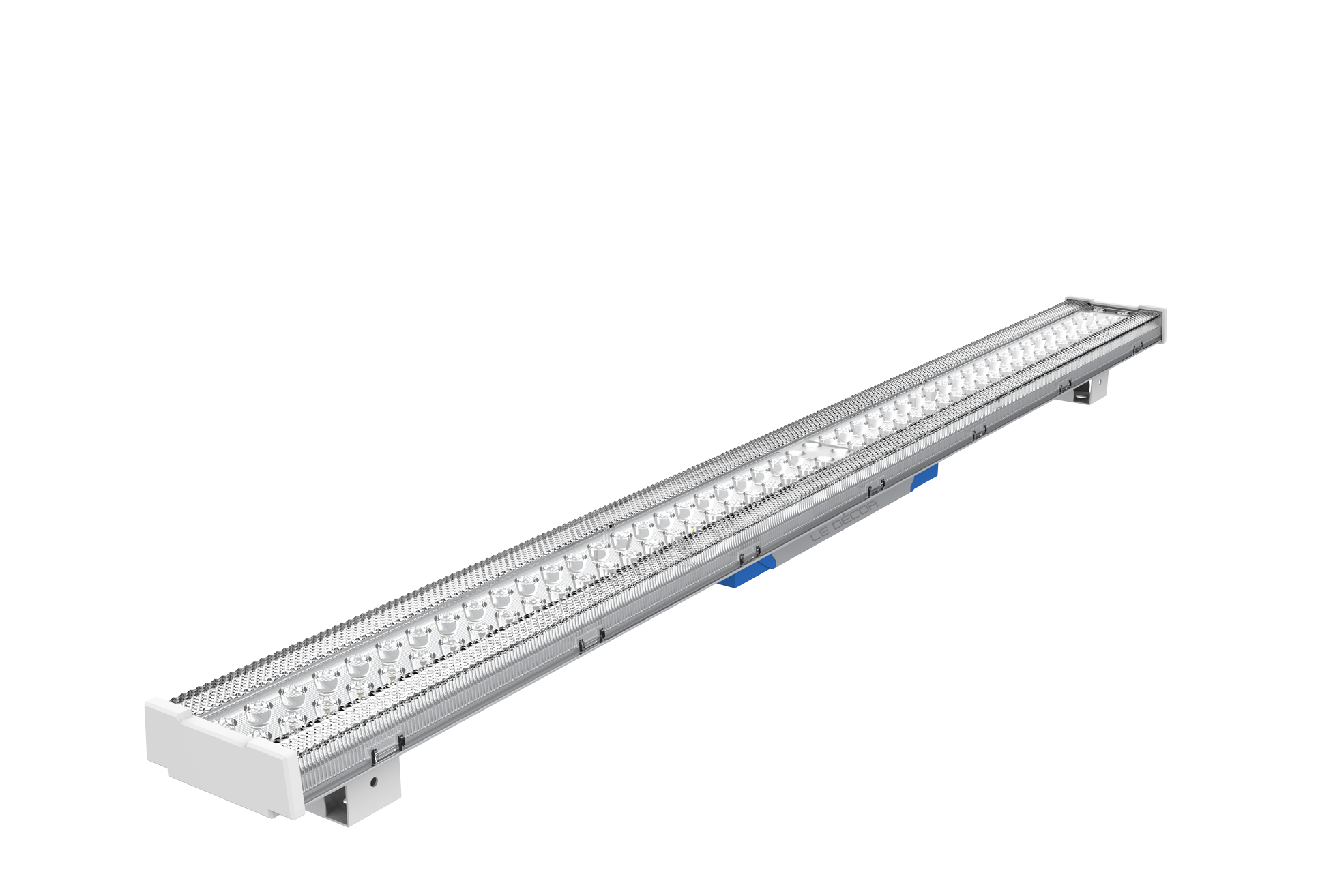

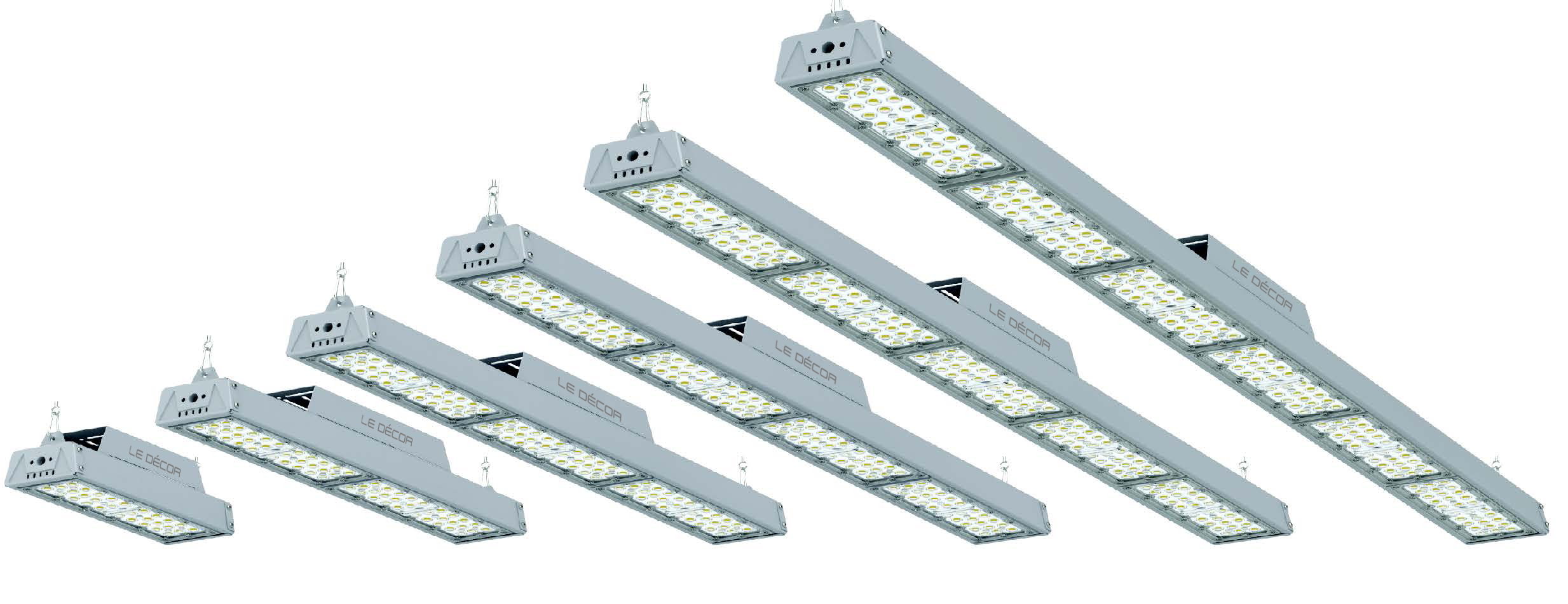

LD-11103-LED Linear High Bay Light
LD-11103-LED Linear High Bay Light
- 6063 aviation aluminium housing with good heat dissipation to make sure the stable long
- High efficient SMD2835 LED
- Imported fireproof PMMA lens, 4 angles for optional. Light transmittance reach 95%
- Suitable for factories, warehouses, supermarkets, etc., as well as some harsh environment places.
- Estimated durability 15+ years
| Light Source: | SMD2835 LED chip |
| Power: | 60W/120W/180W/240W/300W/360W/420W |
| Lumen Efficacy: | 140-160lm/W |
| CCT: | 3000K/4000K/5000K/6000K |
| Input Voltage: | AC180-277V |
| Beam Angle: | 60°,90°,Single25°,Double25° |
| Material: | 6063 Aviation aluminium |
| Finishing Color: | Silver |
| Driver: | Standard |
| IP Rating: | IP42 |
| Mounting: | Ceiling, Pendant Mount |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

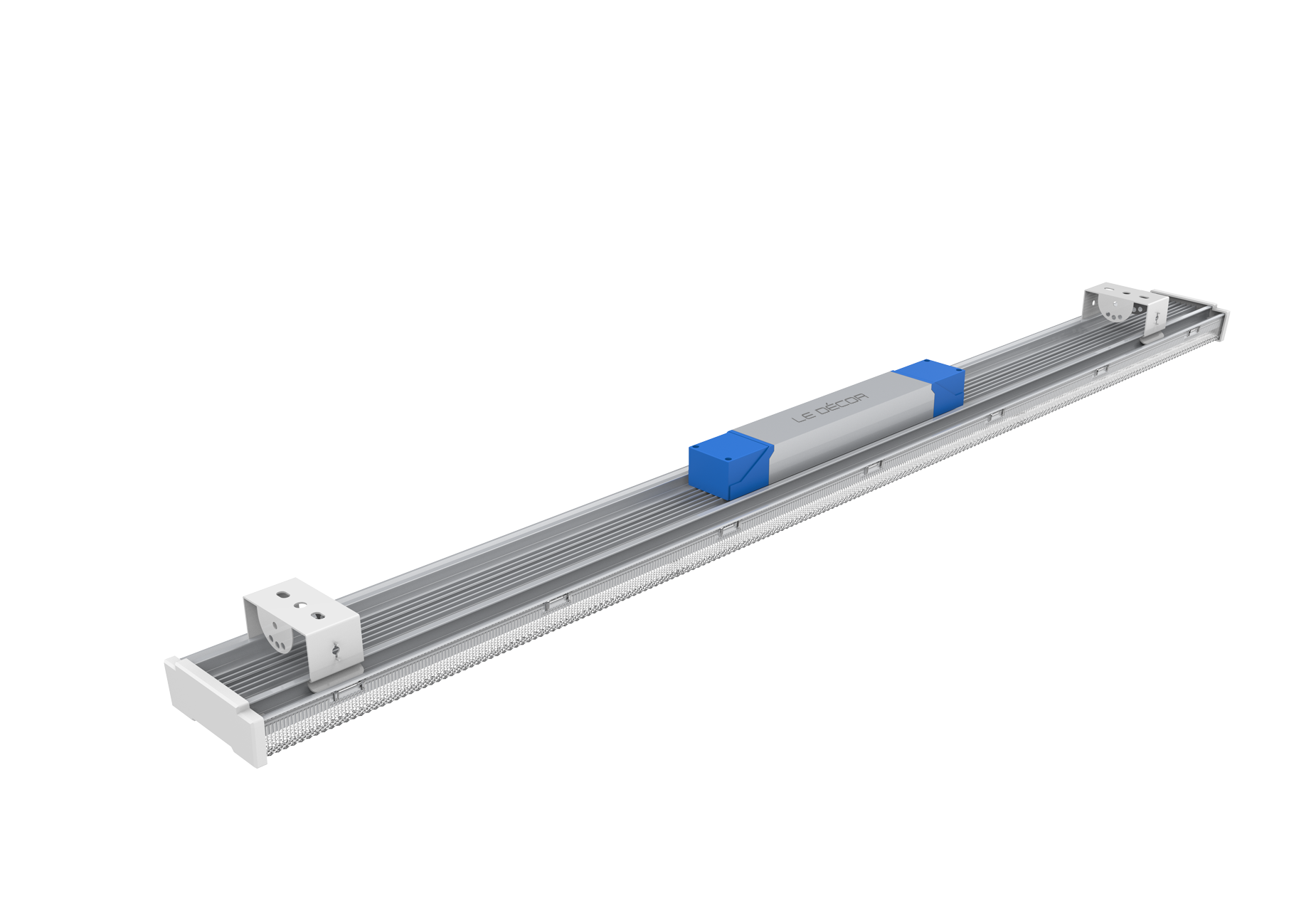

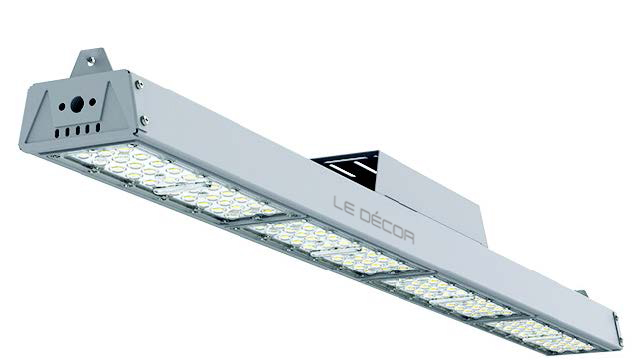

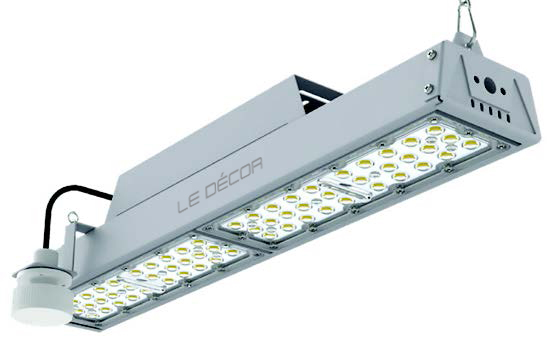

LD-5811-LED Linear High Bay Light
LD-5811-LED Linear High Bay Light
- High quality aluminium housing for durability and excellent heat management
- Adopting high quality LED light sources, Lumileds SMD 5050 LED chip
- Lumen efficiency up to 190Lm/W
- Using professional anti-glare glass: low glare ratio
- 60°/90°/120° optional beam angle
- Motion sensor optional
- Estimated durability 15+ years
| Light Source: | Lumileds SMD 5050 |
| Power: | 50W/100W/150W/200W/240W/ 300W |
| Lumen Efficacy: | 180-190lm/W |
| CCT: | 3000K/4000K/5700K/6500K |
| Input Voltage: | AC100-277V |
| Beam Angle: | 60°/90°/120° |
| Material: | Aluminium |
| Finishing Color: | Grey |
| Driver: | Inventronics/Sosen |
| IP Rating: | IP42/IP66 |
| Mounting: | Wall Mounted, Pole Mounted, Hanging |
| Lifespan: | 100,000h |
Foot note: For a detailed data sheet, contact the manufacturer.
